Brass Honeycomb Core
High conductivity, solderable, RF-shielding
High conductivity, solderable, RF-shielding

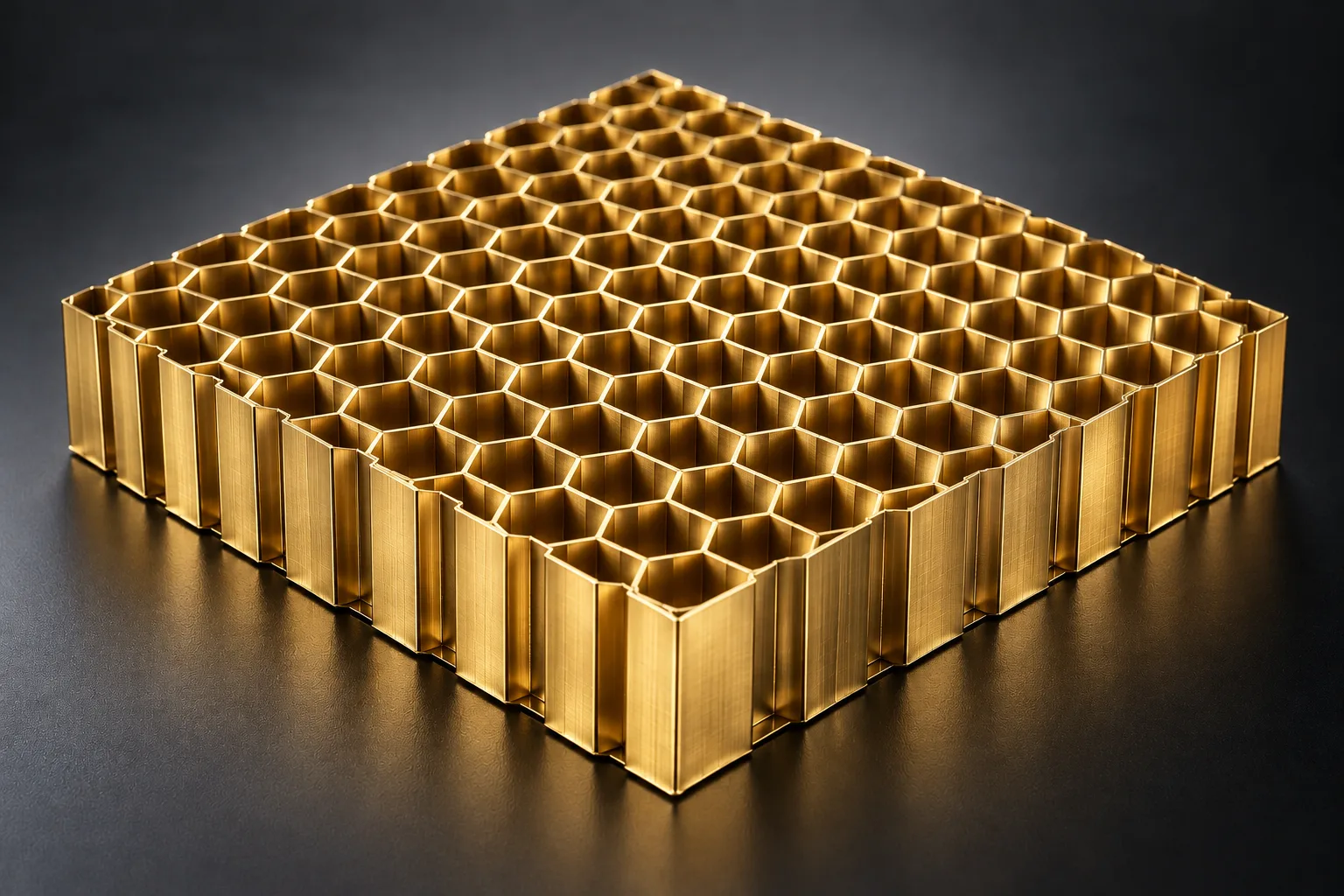

Expanded brass foil, used where ventilation has to pass air while blocking electromagnetic energy. The dense array of conductive cells behaves as an array of waveguides-below-cutoff, attenuating RF across a wide band while keeping airflow open. Brass solders readily, so cores integrate cleanly into shielded enclosures, screen rooms and waveguide hardware.
- Density
- 290 – 900 kg/m³ (18 – 56 pcf)
- Service temp
- to ~200 °C
Strengths
- Excellent electrical conductivity for EMI/RFI shielding
- Solderable — integrates into shielded enclosures
- High attenuation while maintaining open airflow
- Corrosion-resistant without plating
Watch for
- High density — specified for shielding, not light structure
- Higher cost than aluminium
- Not intended as a primary load-bearing core
Typical applications
EMI/RFI shielded ventilation panelsScreened rooms and anechoic chambersMicrowave and waveguide hardwareInstrument and enclosure venting
Built to order
We quote brass core to your specification. Tell us the panel and load case and we'll come back with grades and pricing.
