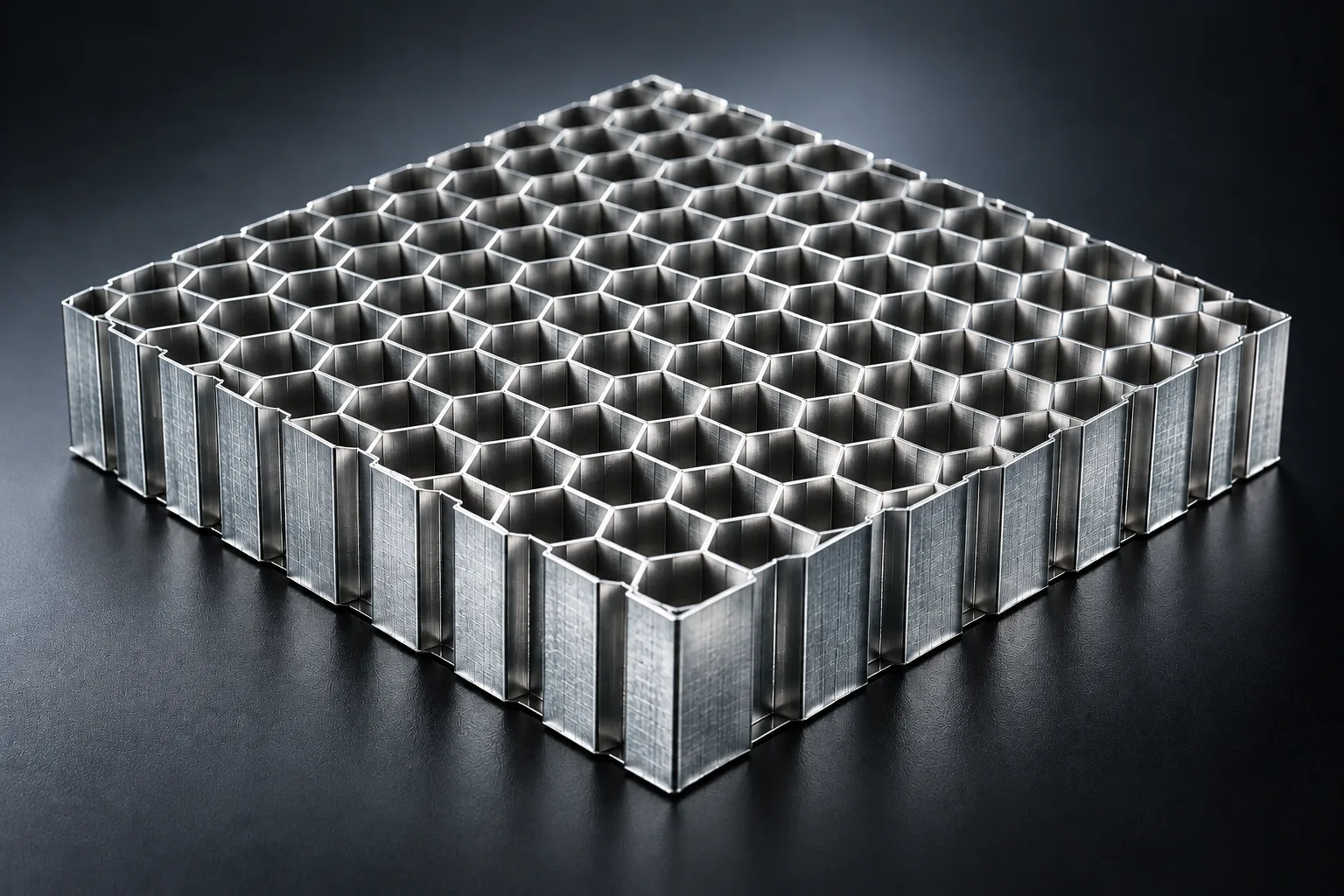

Tin Honeycomb Core
Economical conductive core for shielded airflow
Economical conductive core for shielded airflow
Tin-plated steel foil, an economical conductive alternative to brass for EMI-shielded ventilation. The tin coating gives a solderable, corrosion-protected surface over a steel substrate, so the core shields and vents at lower cost where the very highest conductivity of brass is not required. Common in shielded vents and air-flow apertures on instrument and server enclosures.
- Density
- 250 – 760 kg/m³ (16 – 47 pcf)
- Service temp
- to ~150 °C
Strengths
- Conductive and solderable at lower cost than brass
- Good EMI attenuation with open airflow
- Tin plating resists corrosion and aids bonding
- Robust steel substrate
Watch for
- Lower conductivity than brass or aluminium
- Heavier than aluminium
- Plating must stay intact to prevent substrate corrosion
Typical applications
Cost-sensitive EMI-shielded ventsInstrument and server enclosure airflowShielded cabinet aperturesVentilated electronic housings
Built to order
We quote tin core to your specification. Tell us the panel and load case and we'll come back with grades and pricing.
Request a quote
